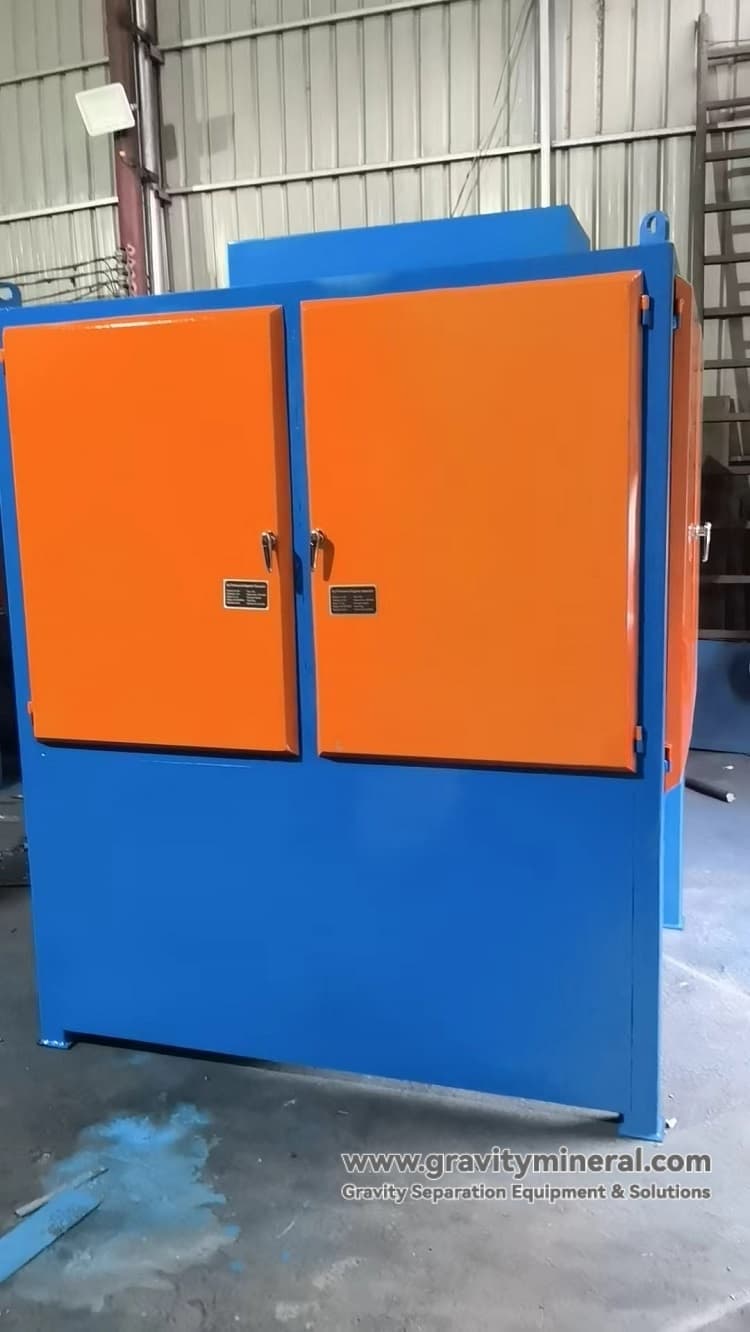

Zircon sand strong magnetic machine

Overview of the machine
Zircon sand strong magnetic separator is a high-efficiency equipment specialized in sorting and purifying weak magnetic minerals (such as zircon, ilmenite, monazite, rutile, etc.), and it is also suitable for removing iron and purifying non-metallic minerals such as quartz and feldspar. The equipment adopts high-strength permanent magnetic system, featuring stable magnetic field, low energy consumption, high sorting efficiency and strong adaptability, which can effectively improve the concentrate grade and recovery rate of zircon sand and other minerals.

At present, our company provides two types of double-roll strong magnetic zirconia machine and three-roll strong magnetic zirconia machine, which can meet the requirements of different production scale and sorting precision.

1. Double-roller strong magnetic zirconia machine

Features

• Two-stage sorting: adopting double-roll design, it can carry out roughing and fine sorting to improve sorting efficiency.

• High magnetic field strength: the magnetic field strength can reach 12,000-15,000 gauss, which is suitable for effective separation of weak magnetic minerals.

• High processing capacity: depending on the length of the magnetic roller, the processing capacity can be up to 1-4 tons/hour.

• Energy saving and environmental protection: low energy consumption operation, compared with the traditional electromagnetic separator energy saving more than 30%.

• Compact structure: light weight, small footprint, easy to install and transport.

Technical Parameters

Applicable Scene

• Small and medium-sized mineral processing plant

• Zircon sand roughing and concentrating

• Iron removal from quartz sand, feldspar and other non-metallic minerals.

2. Three-roll strong magnetic zircon machine

Characteristics

• Three-stage sort ing: Compared with the double-roll machine, one stage of sorting is added, which can further improve the grade of concentrate.

• High-precision sorting: suitable for applications requiring higher purity of minerals, such as purification of high-purity zircon sand.

• Adjustable magnetic field: the magnetic roller adopts modular design, and the magnetic field strength can be adjusted according to the mineral characteristics (12,000-15,000 gauss).

• Large processing capacity: similar to the same specifications as the double-roller machine, but the sorting effect is better.

Technical Parameters

Applicable Scenario

• High-end zircon sand concentrate production

• High purity mineral sorting

• Multi-stage separation for large-scale mineral processing plants

Equipment Advantages Summary

• ✔ High magnetic force: 12,000-15,000 gauss strong magnetic field, ensure the effective separation of weak magnetic minerals.

• ✔ Low energy consumption: permanent magnetic design, low running cost, energy saving and environmental protection.

• ✔ Flexible configuration: according to the mineral characteristics of the magnetic roller speed and sorting process can be adjusted

• ✔ Stable and durable: fully enclosed structure, dustproof and moisture-proof, adapting to the harsh working conditions.

For more detailed technical parameters of zircon sand strong magnetic machine or customized zircon strong magnetic magnetic separator purification program, please feel free to contact us!
