Solution for ilmenite ore dressing (gravity + magnetic separation)

ilmenite ore dressing solution, ilmenite gravity-magnetic separation combined processing technology

I. Program Overview

This ilmenite beneficiation solution provides a combined process with gravity and magnetic separation as the core for the different characteristics of sand-type and rock-type ilmenite. Through scientific and reasonable process design and professional equipment configuration, it makes full use of the density and magnetic difference between minerals to realize the efficient recovery and enrichment of ilmenite, which is characterized by stable process, strong adaptability and easy operation.

Process flow

1. Alluvial ilmenite beneficiation

   • Washing and screening:

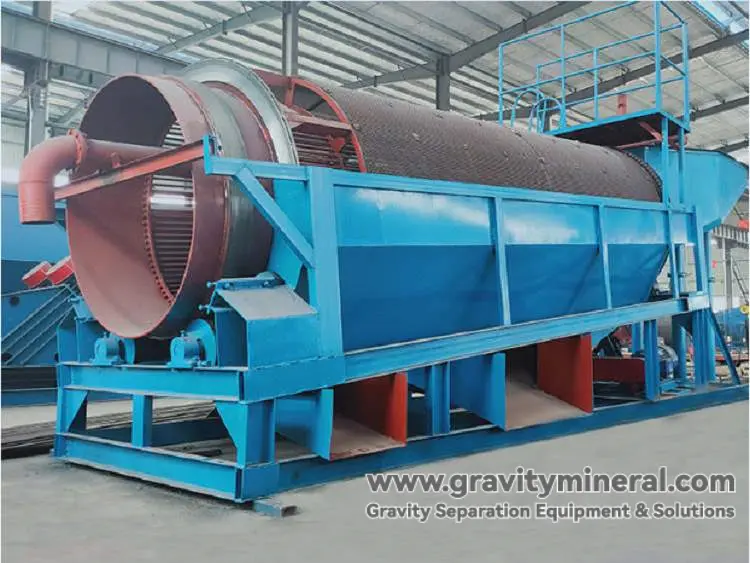

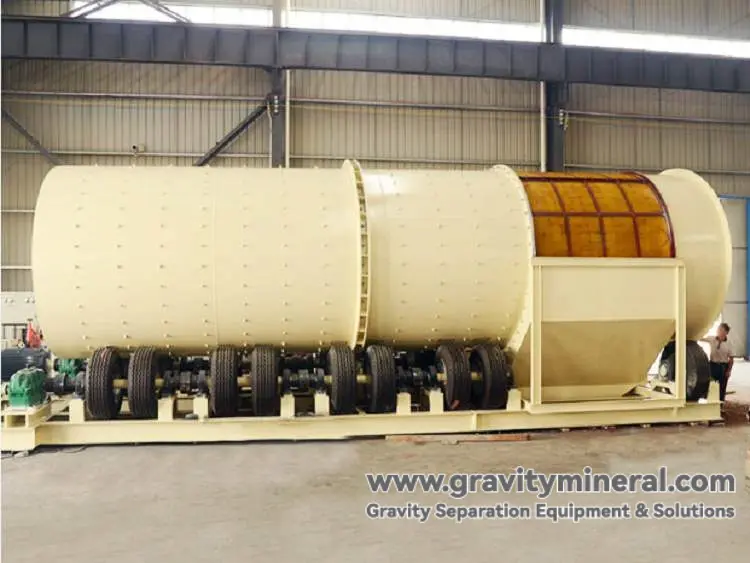

     • Trommel screen/rotary scrubber to remove impurities

     • Processing capacity: 50-300t/h

   • Gravity enrichment:

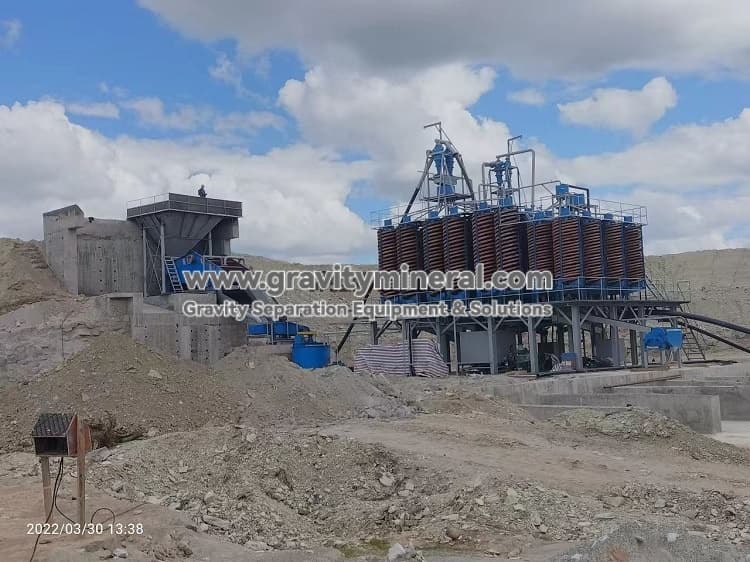

     • Spiral chute roughing and sweeping

     • Feed concentration: 30-35%

   • Magnetic separation and purification:

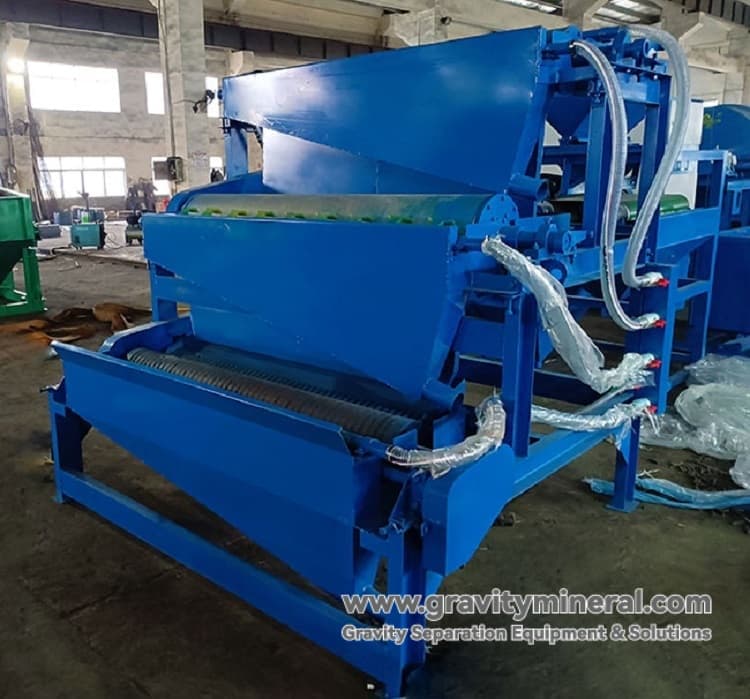

     • Multi-gradient magnetic separation and sorting (low magnetic field roughing, high magnetic field selection)

     • Field strength range: 0.8-1.5T

2. Igneous ilmenite beneficiation

   • Crushing and grinding:

     • Jaw crusher coarse crushing

     • Cone crusher medium crushing

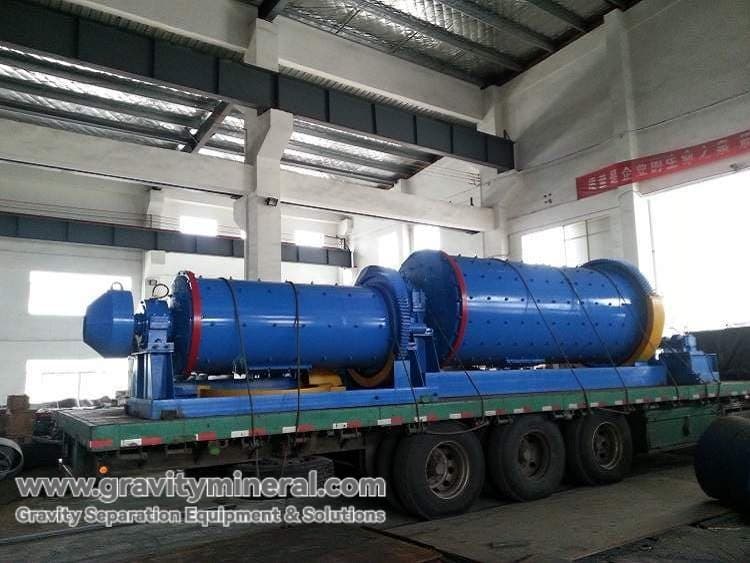

     • Ball mill fine grinding to -0.3mm

   • Gravity enrichment:

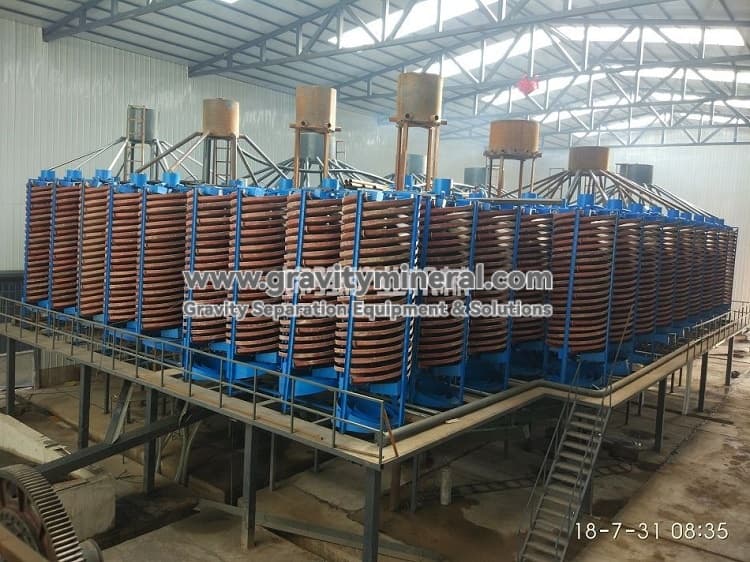

     • Spiral chute pre-enrichment

   • Magnetic separation purification:

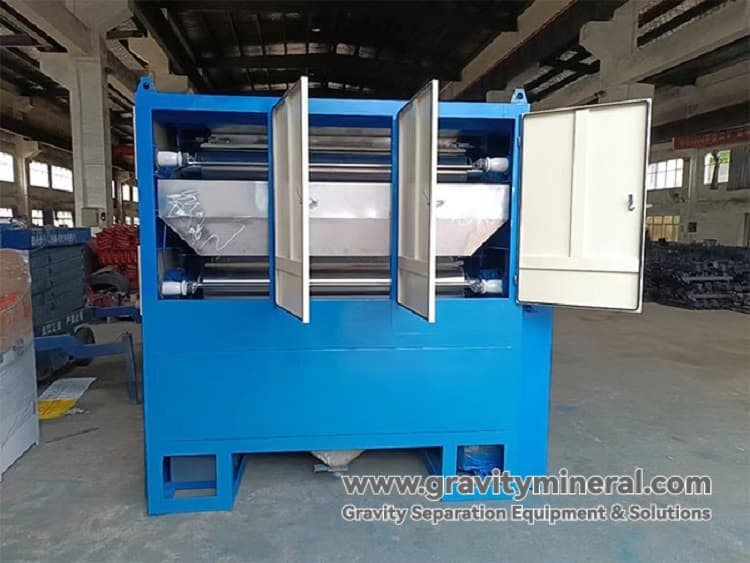

     • Multi-gradient magnetic separation

     • Adjustable field strength, adapt to different particle size

Third, the core equipment configuration

Fourth, technical indicators

• Processing capacity: 50-500t/d (can be customized)

• Concentrate grade: TiO₂≥48

• Energy consumption: according to the processing capacity configuration

V. Program Advantages

• ✅ High-efficiency sorting: gravity and magnetic separation synergize, high recovery rate and excellent concentrate grade.

• ✅ Economic investment: simple process flow, reasonable investment in equipment.

• ✅ Strong adaptability: suitable for all kinds of ilmenite, with a wide range of processing size.

• ✅ Environmental protection and energy saving: no chemical additives, water recycling.

• ✅ Stable and reliable: mature and durable equipment, easy to operate and maintain.

Suggestions for model selection

1. Sand type ilmenite

   • Give priority to gravity + magnetic separation process

   • When the size of the raw ore is fine, the sweeping process can be added.

2. Rock-type ilmenite

   • Adopt gravity + magnetic separation process for regular ore

   • Increase the number of selections when high purity is required

VII. Technical Service

We provide a full range of technical support:

• 🛠️ Engineering design: process design, equipment selection and configuration , site planning , drawing design .

• 👨‍💻 Production support: equipment installation and commissioning guidance, operator training

• 🔧 After-sales service: long-term technical support, supply of spare parts

Eight, the scope of application

• Alluvial ilmenite sorting

• Igneous ilmenite separation

• Recycling of ilmenite tailings

• Iron ilmenite crude concentrate purification processing

For more information about ilmenite beneficiation solutions or to get a customized solution quote, welcome to contact our professional technical team!
