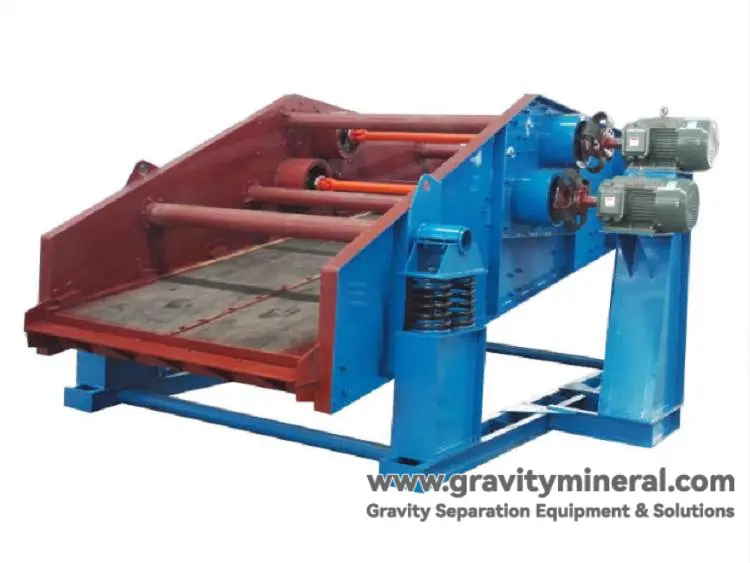

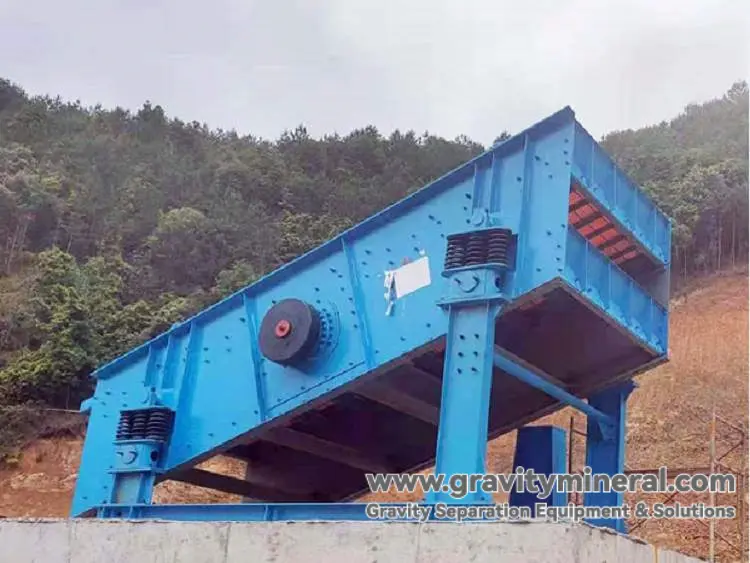

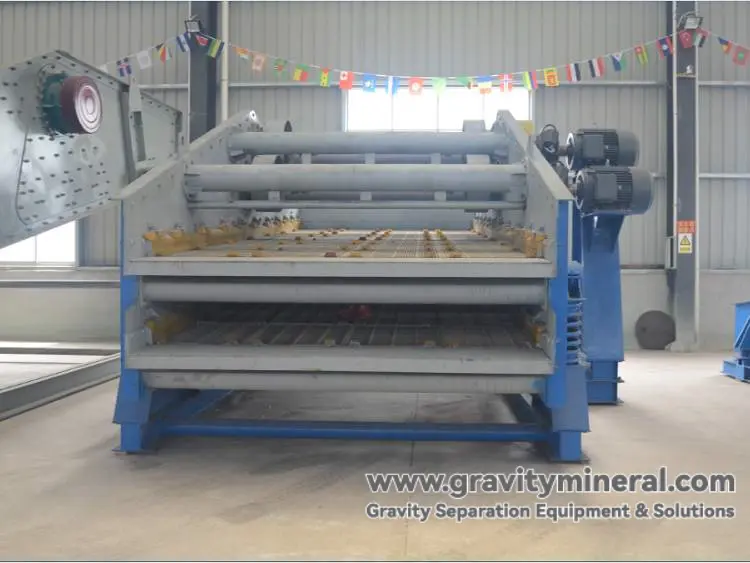

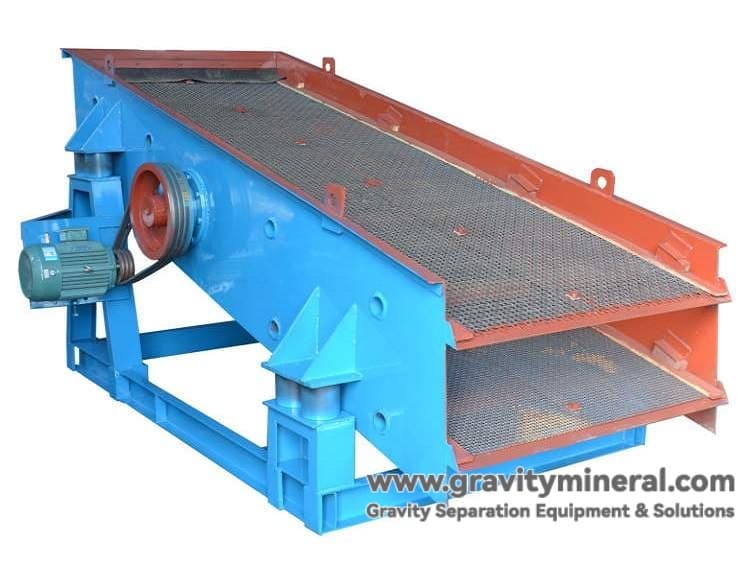

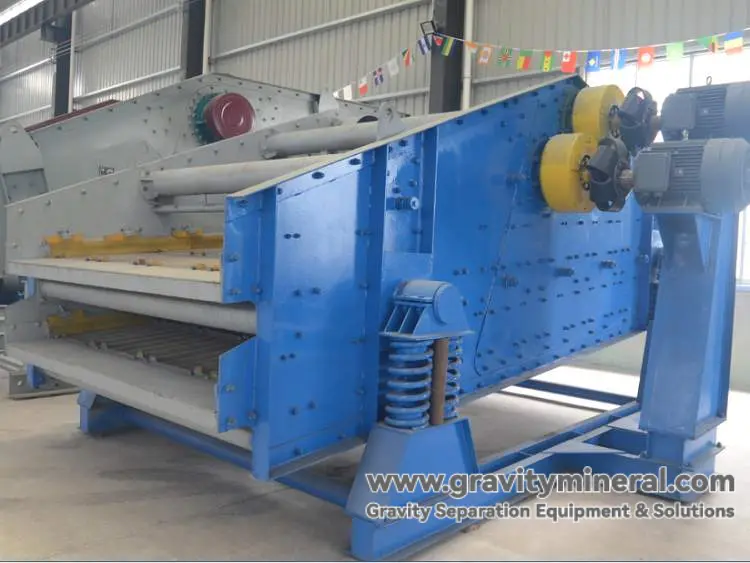

High frequency vibrating screen

Product Overview
High-frequency vibrating screen is a high-efficiency equipment specially developed for ore screening, coal slurry dewatering and tailings dry discharge and other working conditions. It adopts the working principle of high frequency and low amplitude to realize the forced dewatering of the material layer and significantly improve the processing efficiency. This equipment provides two types of structures: the upper vibration type and the patented lower vibration type, among which the lower vibration type design greatly reduces the maintenance difficulty, which is the ideal dewatering solution for coal mines, coal processing plants and other fields.

Core technology advantages

📳 Innovative Vibration System

• Block eccentric self-synchronized shaker: vibration frequency up to 3000 times/minute, dewatering efficiency increased by 50%.

• Double coupling drive (tape elastic + universal coupling): smooth operation, effectively reduce bearing wear.

🏗️ Patented structure design

• Patented downward vibration structure (exclusive): the motor is placed under the screen box, increasing the maintenance convenience by 80%.

• Optimized beam structure: anti-fatigue design extends equipment life by 3 times.

🧠 Intelligent dewatering control

• Frequency conversion speed control: adjust the best vibration parameters according to the material characteristics.

• Automatic tensioning system: screen mesh always maintains the best working condition.

Four industry breakthroughs

💧 Dewatering revolution

• Coal slurry processing capacity is 2 times higher than traditional equipment.

• -Recovery rate of 0.5mm fine grains >90%.

🛡️ Long life design

• The key components are made of chrome-molybdenum alloy steel, which increases the wear resistance by 5 times.

• Modularized screen box, partially replaceable, maintenance cost is greatly reduced.

📱 Intelligent operation and maintenance

• 📱 Intelligent operation and maintenance 📱 Online monitoring of vibration bearing temperature, real-time mastery of the operating status

• Support cell phone APP remote troubleshooting, rapid response to maintenance needs.

🌱 Environmental protection and energy saving

• Closed structure design reduces dust escape by 95%.

• 40% reduction in energy consumption per ton processed, more economical operation.

Typical applications

• Coal preparation plant: fine coal dewatering, tailing coal recovery

• Coal mine: underground coal water slurry treatment

• Metal mines: tailings dry drainage system

• Environmental engineering: sludge deep dewatering

Technical Parameters

For more high frequency vibrating screen model parameters and customized service, please contact us!
