Wet Magnetic Separator

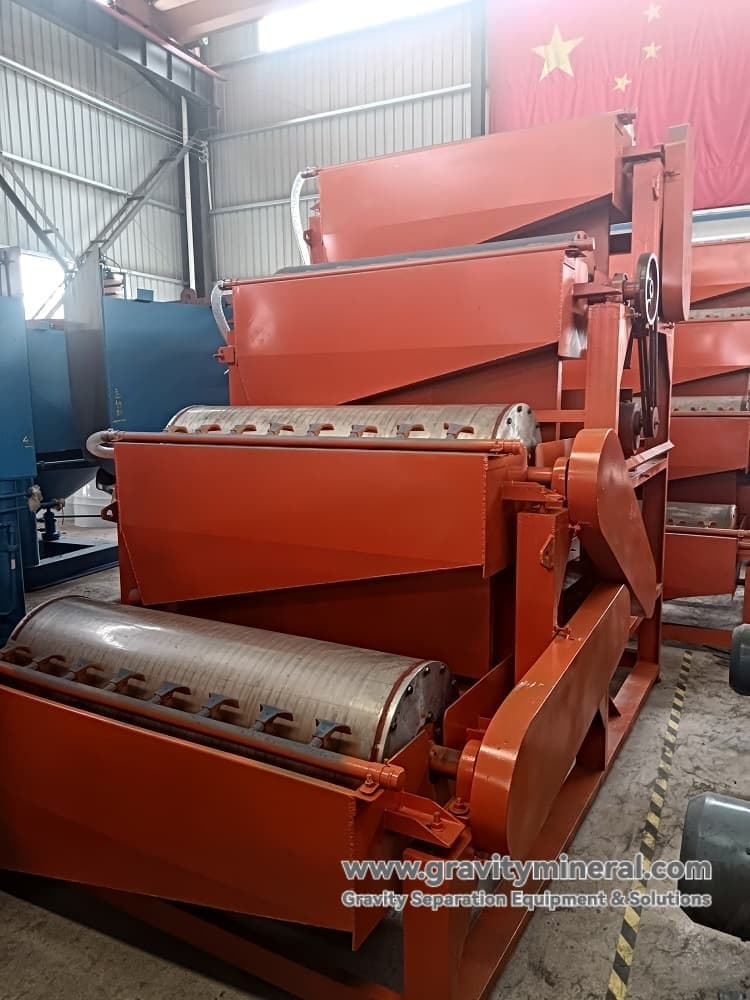

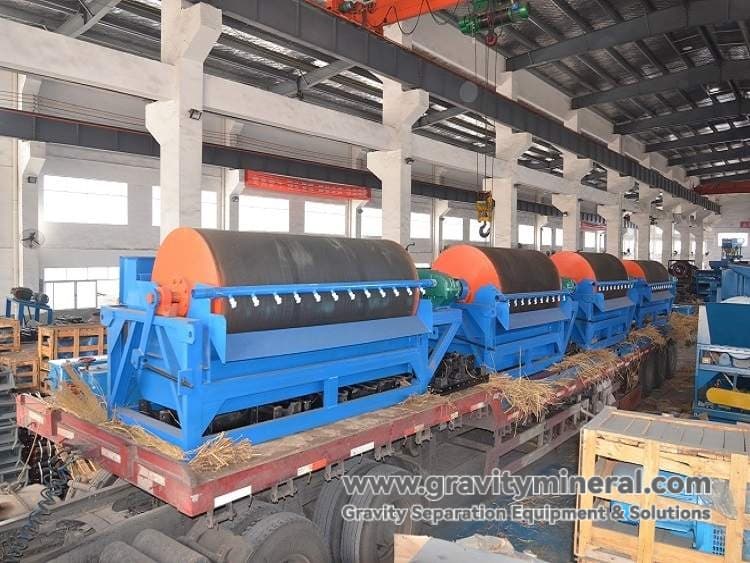

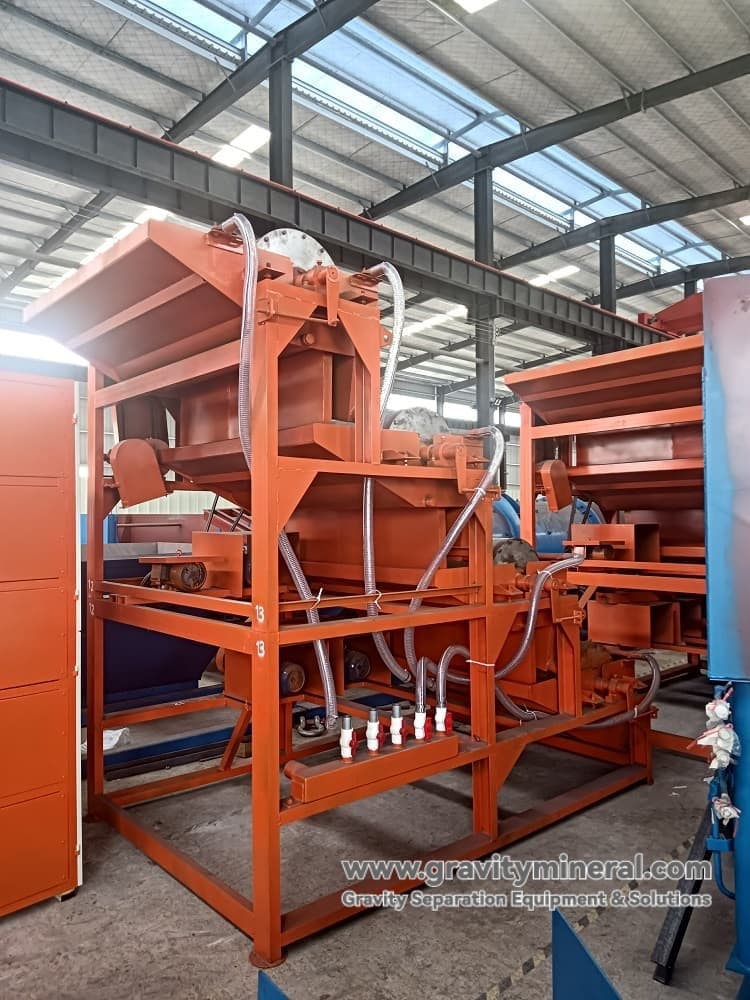

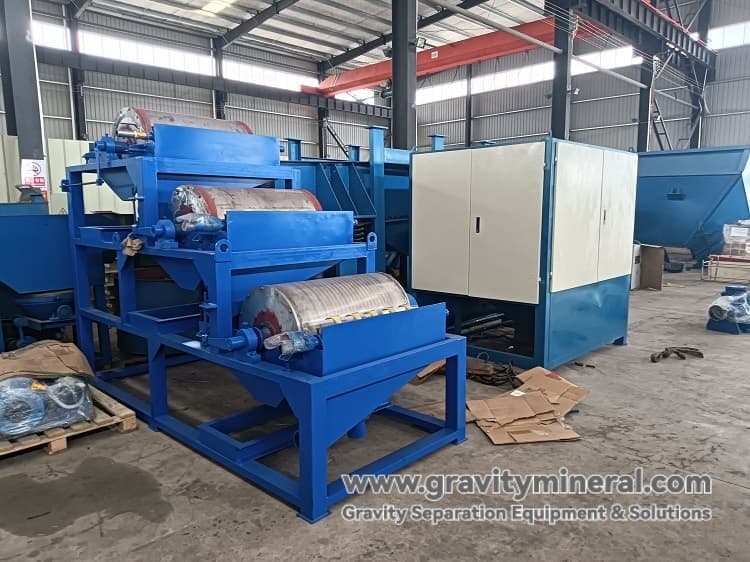

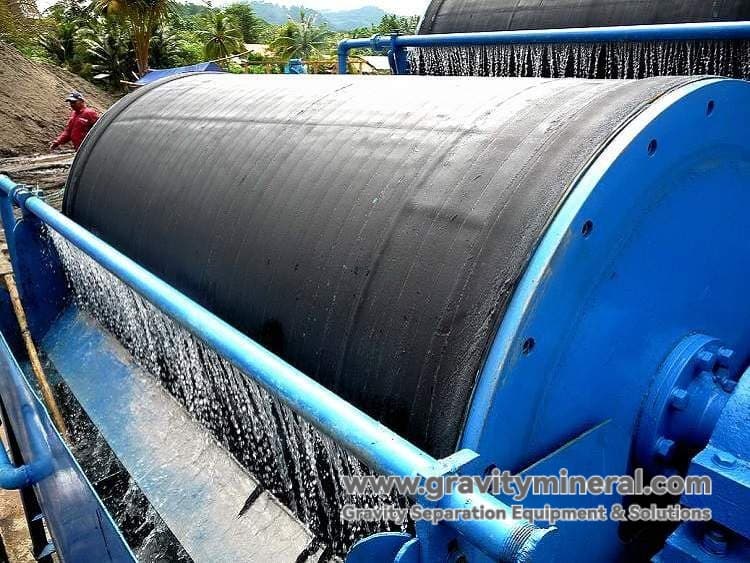

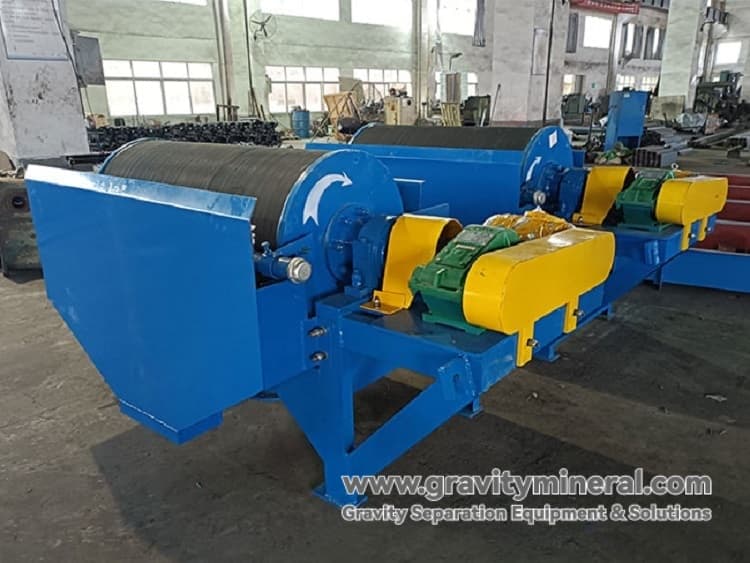

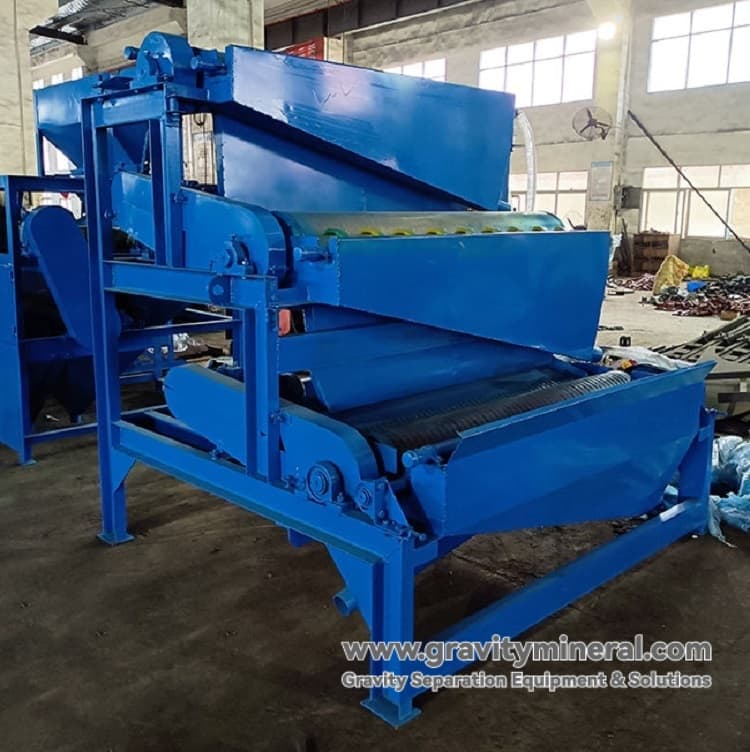

CTS(N.B) Series Permanent Magnetic Wet Magnetic Separator

I. Product Overview
CTS(N.B) series permanent magnet wet magnetic separator is a professional equipment designed for wet sorting of fine-grained strong magnetic minerals. It adopts high-performance rare-earth permanent magnetic material to construct magnetic system, which has the features of stable magnetic field, high sorting efficiency and strong adaptability, etc. The machine is widely used in selecting and purifying iron ore, manganese ore and quartzite. This machine is widely used in the selection and purification of iron ore, manganese ore and other strong magnetic minerals, as well as quartz sand, feldspar and other non-metallic minerals to remove iron purification.

Product series and tank type

• Magnetic system structure type

• Tank type and application range

Technical Features

• High performance magnetic system
  Adopting NdFeB permanent magnetic material, the surface magnetic field strength can reach 1500-6000GS;
  Computer optimized magnetic circuit design, reasonable magnetic field gradient;
  Ten-year decay rate of magnetic performance <3%.

• Intelligent sorting control
  Stepless adjustable cylinder speed (10-50rpm);
  Precise control of slurry flow;
  Optional automatic flushing system.

• Durable structure design
  Cylinder body is clad with stainless steel or wear-resistant rubber;
  Tank lining is ultra-high polymer polyethylene;
  IP54 protection grade for transmission system.

Technical Parameters

V. Selection Guide

• Iron ore selection
  Recommended CTB type semi-countercurrent tank;
  Magnetic field strength 4000-5000GS;
  Cylinder speed 20-30rpm.

• Quartz sand iron removal
  Recommend CTN type counter-current tank;
  Magnetic field strength 3000-4000GS;
  Ore feeding size <0.3mm.

• Manganese ore roughing
  Recommend CTS type downstream tank;
  Magnetic field strength 3500-4500GS;
  Processing capacity can be increased by 20%.

Installation and Maintenance

• Installation points
  Base level deviation <1/1000;
  Inlet and outlet slurry pipes need to be provided with flexible connection;
  The magnetic system position is adjusted and locked.

• Daily maintenance
  Checking cylinder wear every shift;
  Monthly inspection of magnetic field strength;
  Regular cleaning of tank deposits.

• Common troubleshooting
  Decrease in concentrate grade: check the position of the magnetic system, the amount of flushing water;
  Abnormal vibration: check bearing, coupling alignment;
  Running slurry: adjust the height of overflow weir.

With its excellent performance and flexible configuration, this series of wet magnetic separator has become the main wet magnetic separation equipment in modern mineral processing plant. Welcome to call for specific selection program and technical support!
