Solutions for Gravity Beneficiation of Rock Gold Ore

Program Overview

The core of rock gold mining (vein gold ore) is the efficient recovery of free gold particles from hard rock. Based on the physical separation principle of mineral density difference, the gravity separation solution for rock gold ore provided by our company has become the preferred process for processing alluvial and quartz vein-type gold ores due to the advantages of low investment cost, easy operation and maintenance, no chemical pollution, and extremely high recovery rate of coarse-grained gold. We provide a full range of services from process design, core equipment manufacturing to installation and commissioning, and are committed to maximizing your return on investment and achieving efficient and green recovery of gold resources.

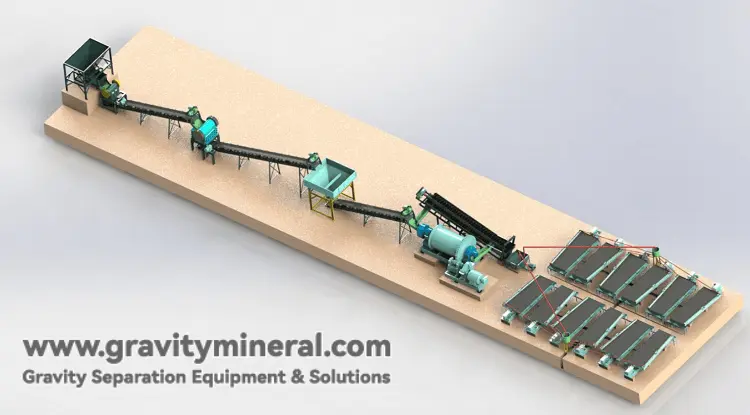

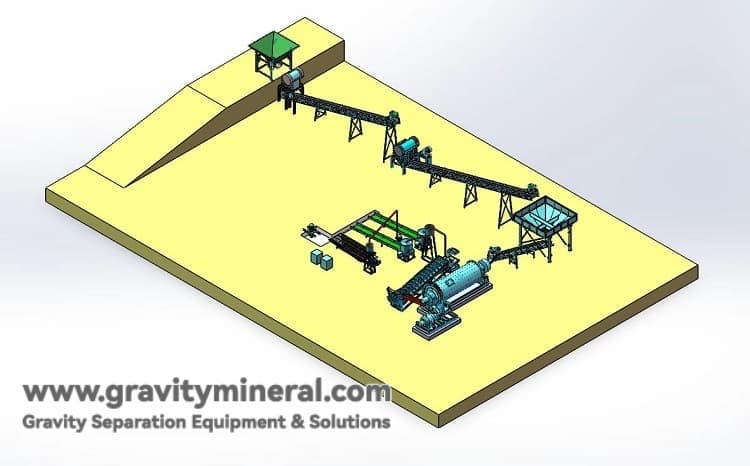

Process Flow

Stage 1: Crushing System

Raw ore is evenly fed into the jaw crusher through vibrating feeder for coarse crushing, crushing the large ore to medium size; and then through the cone crusher or fine jaw crusher for medium and fine crushing, ultimately crushing the ore to -15mm or finer size, creating conditions for the gold particles to fully dissociate.

Core Equipment: Vibrating Feeder, Jaw Crusher, Cone Crusher/Hammer Crusher, Belt Conveyor

Phase II: Grinding and Classification

The crushed ore enters the ball mill, and the impact grinding by steel balls realizes the full dissociation of gold particles and vein stones. After grinding, the slurry is cleaned, classified and de-sludged by the spiral classifier, the qualified fine-grained grade enters into the sorting process, and the coarse-grained grade returns to the ball mill to form a closed-circuit cycle to ensure the grinding efficiency.

Core equipment: ball mill, spiral classifier

The third stage: gravity separation (core link)

Adopting multi-stage joint operation mode, recovering from coarse to fine layer by layer to ensure the highest recovery rate of gold particles of different grain sizes:

• Roughing: jigger utilizes vertical alternating current to efficiently recover medium and coarse-grained gold, with large processing capacity and continuous operation.

• Concentration: Shaking table obtains high grade gold concentrate through asymmetric reciprocating motion, with very high sorting precision.

• Sweeping: Centrifugal concentrators recover fine-grained gold efficiently through centrifugal force field; Plate chute is used as a powerless sweeping equipment, which is low-cost and easy to operate.

Core equipment: jigger, shaking table, centrifugal concentrator, and plate chute.

Stage 4: Concentrate Processing

Heavy sand concentrates are amalgamated to form gold amalgam, and the mercury is recovered by heating distillation to obtain crude gold ingots or high-grade gold concentrates, which can be sent to professional smelters for final purification.

Advantages of core equipment

Program Advantages

1. High recovery: Multi-stage gravity process ensures efficient recovery of gold from coarse to fine grains.

2. Low-cost operation: Electricity is the main source of energy, and no expensive chemicals are required, significantly reducing production costs.

3. Environmentally friendly: the whole process of physical beneficiation, no cyanide pollution, easy to dispose of tailings.

4. Rapid return on investment: low investment in equipment, short construction period, rapid production and profitability.

5. Flexible customization: the optimal process is customized according to the nature of the ore (gold grains embedded characteristics, grade, processing capacity).

Successful Cases

We have provided mature and reliable solutions for dozens of rock gold mining projects around the world. A large quartz vein-type gold mining project in Africa adopts our core process of "Jaw Breaking + Cone Breaking → Ball Mill + Spiral Classification → Jigging + Centrifugal Concentrator + Shaking Table", which has significantly improved the grade of the raw ore, and the output of gold concentrate is of excellent quality, with the economic benefits far exceeding the expectations of the customers, and is highly recognized by the owner.

Technical Service Support

We provide a full range of technical support:

• Engineering design: beneficiation process design, production site planning, drawing design, equipment selection and configuration.

• Production support: equipment supply, engineers visit to guide the installation and debugging

• After-sales support: parts supply, technical consulting, operation optimization services.

If you need to get the detailed solution of gravity separation of rock gold ore or project consulting, please feel free to contact us, we will configure the best rock gold ore production line program and provide you with preferential quotations.

GravityMineral -- Professional gravity separation technology to awaken the value of each grain of gold!
