Spiral Log Washer

Specialized in Spiral Log Washer, it is suitable for cleaning, desliming and grading operation of materials such as construction sand, stone, ore, gravel and so on. The equipment adopts double screw structure, with high washing degree, large capacity and low energy consumption. We provide a variety of specifications and configurations, and support customized services to meet the washing needs of different customers.

We provide free proposals and quotes 24/7.

Feel free to contact us via WeChat/WhatsApp: +8619914754015

Submit your inquiry, and we will provide you with a professional solution.

Model: {{ product.model }}

weight: {{ product.weight }} Kilogram

Product Inquiry

Product Details

OVERVIEW
Spiral washing machine is mainly used to wash manganese ore, iron ore, phosphorus ore and other minerals. It is used for washing and separating the sludge and stains of manganese ore, iron ore and other low-grade minerals, with large processing capacity, easy installation, simple operation, low cost and high efficiency.

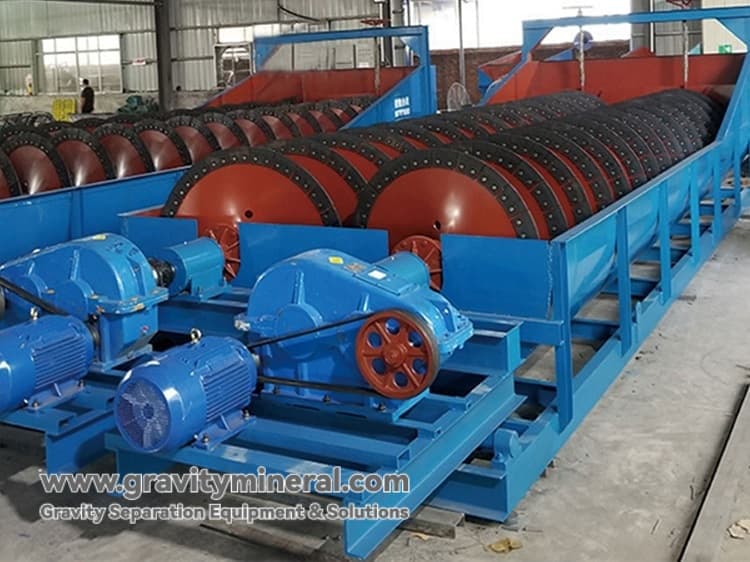

The spiral washer uses reducer to drive two spiral stirring shafts to rotate in different directions, the minerals entering the tank are strongly stirred by the blades and washed by the water, the sewage is discharged from the overflow surface at the end of the tank, and the washed minerals are discharged upward along with the inclination angle of the blades.

Technical Parameters

Model	Spiral size (mm)	Rotating speed (r/min)	Feed size (mm)	Trough inclination (o)	Output (t/h)	Power (Kw)	Weight (t) (t)
2RXL320	Φ320×3200	28	≤30	≤12	10	4	0.9
2RXL400	Φ400×4600	23	≤30	≤12	20	5.5	1.9
2RXL540	Φ540×4600	23	≤30	≤12	25	7.5	3.9
2RXL750	Φ750×7600	22.7	≤70	≤12	50	11	7.5
2RXL800	Φ800×7600	22	≤70	≤12	70 ≤12	15	9.5
2RXL914	Φ914×7600	21	≤70	≤12	100	22	12.9

To find out more about our products and solutions, please fill out the form below and one of our experts will get back to you shortly.
